Specification and model

QF-(1.5-8.0)X800mmX20T， The material thickness is 1.5-8mm, the plate width is 100-800mm, and the maximum roll weight is 20 tons. It can be longitudinally cut into strips of 1.5-3.0mm thick plate to 20 strips, 3.1-8.0mm to 16 strips, 7.1-8mm to 10 strips, and the finished roll weighs 20 tons per roll. The equipment is driven by Siemens Beide series motors, and the hydraulic system controls the pressing and winding of materials, adapting to different specifications of metal raw materials. In continuous production mode, the daily production capacity can reach up to 80-300 tons, suitable for high-precision scenarios such as lithium battery separators and stainless steel foils. The overall performance is stable, meeting the needs of heavy industry and high value-added material processing. Its functions include high-precision slitting, intelligent continuous production, flexible parameter adjustment, and energy-saving and environmentally friendly design, meeting the efficient and precise slitting needs of multiple industries such as metal processing, packaging, and new energy.

Structural Composition

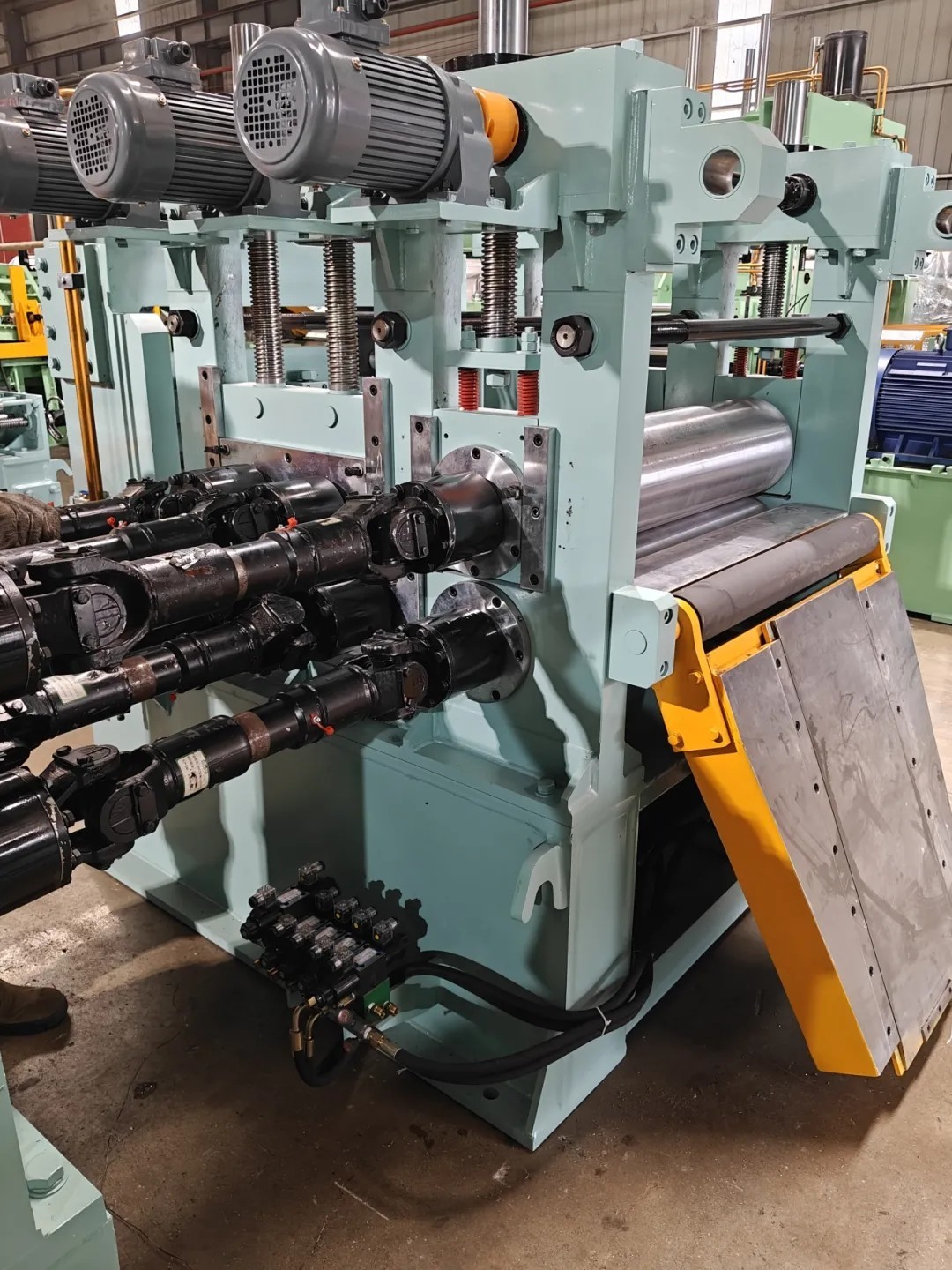

1. Shovel Head: The plate surface is hard chrome-plated to avoid any scratches on the material, and it is lifted by a hydraulic cylinder. When unwinding, it feeds the coil head into the pinch rollers together with the buffer rollers.

2. Pinch Rollers: The side plates are welded and annealed using posterior steel plates. The bearing seats are precisely bored for two working rollers. The upper and lower rollers are welded from seamless steel pipes and round steel, qualitatively processed, precisely ground, and hard chrome-plated.

3. 5-Roll Leveler: Composed of a plate, leveling rollers, and a synchronous pressing device. Five leveling rollers, the upper rollers are driven by two gear motors with worm gear adjustment. The gap between the upper and lower rollers is manually adjusted via a hand wheel.

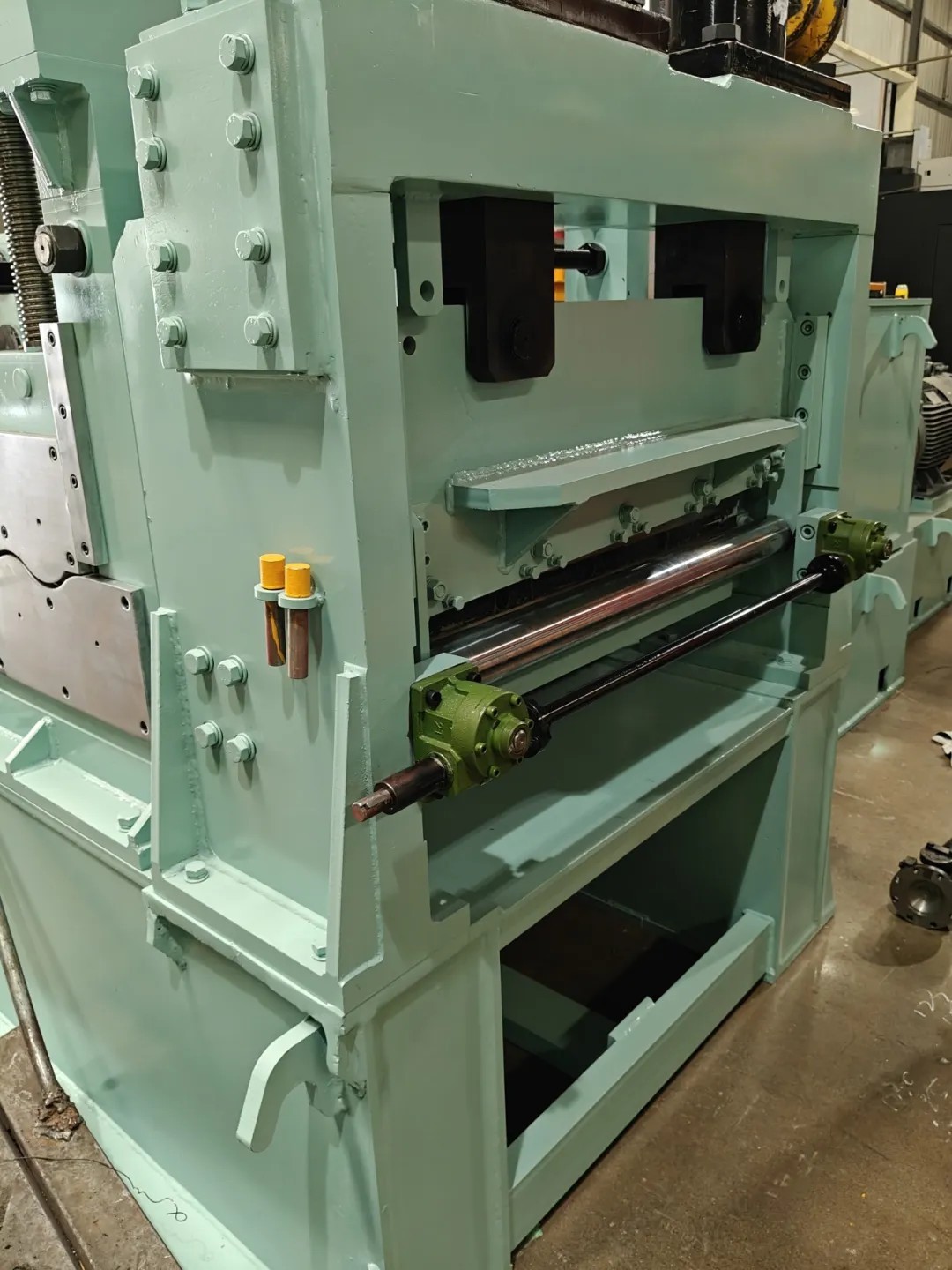

4. Plate Head Shear: Driven by an oil cylinder, the gap between the shear blades can be manually adjusted when cutting plates of different thicknesses. The four-sided shear can use replaceable blades alternately.

In addition, the machine's power unit consists of a frame, a synchronous cabinet, a universal joint, a gear motor, etc.

Function and Use

The coil head is automatically fed into the slitting machine via the control console. It is a device used to level uneven steel plates. This leveler adopts a single-layer roller structure with 2 upper and 3 lower rollers. All rollers are precisely machined, tempered, chrome-plated, and polished to ensure surface hardness and smoothness, achieving the best leveling effect. The leveling rollers are independently driven by a universal joint from a distribution gearbox, and the single machine can perform forward and reverse rotation. The shear is used to cut irregularly shaped plate heads and materials, preparing for subsequent processes.
